Hindfoot Phantom® TTC Trauma Nail

Phantom® TTC Trauma Nail

Available in 150 mm, 300 mm, and 350 mm lengths
Offered in Ø10.0 mm, Ø11.5 mm, and Ø13.0 mm diameters
Quad Flex Tip designed for proximal stress dissipation and controlled insertion
PRECISION® Guide Technology for reproducible trajectory and reduced variability
Internal Compression Screw providing up to 8 mm of compression across the tibiotalar and subtalar joints
Ø7.2 mm headless threaded pegs for enhanced fixation in the calcaneus and subtalar joint
Fully compatible with existing Phantom® Hindfoot instrumentation, with updated drill option for freehand proximal screw placement in long nails
https://paragon28.com/app/uploads/2025/09/Website_HeroShot_TraumaNail.png
https://paragon28.com/app/uploads/2025/09/Website_HeroShot_TraumaNail.png

Phantom® TTC Trauma Nail

Available in 150 mm, 300 mm, and 350 mm lengths
Offered in Ø10.0 mm, Ø11.5 mm, and Ø13.0 mm diameters
Quad Flex Tip designed for proximal stress dissipation and controlled insertion
PRECISION® Guide Technology for reproducible trajectory and reduced variability
Internal Compression Screw providing up to 8 mm of compression across the tibiotalar and subtalar joints
Ø7.2 mm headless threaded pegs for enhanced fixation in the calcaneus and subtalar joint
Fully compatible with existing Phantom® Hindfoot instrumentation, with updated drill option for freehand proximal screw placement in long nails
PRODUCT DESCRIPTION

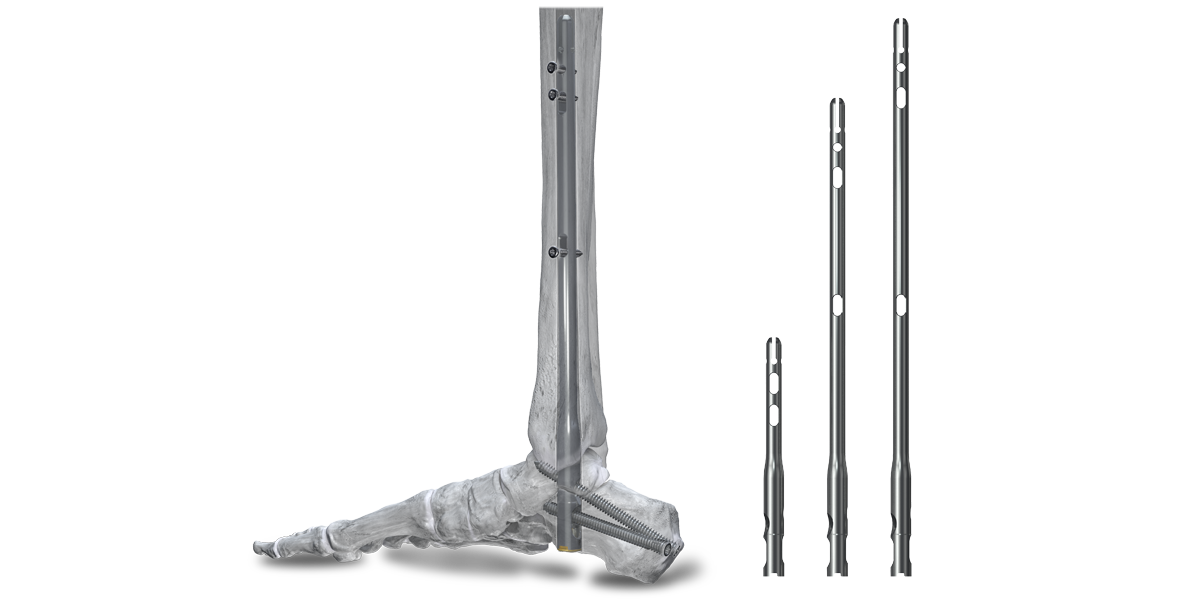

The Phantom® TTC Trauma Nail is an extension of the Phantom® Hindfoot system designed to address complex hindfoot trauma and tibiotalocalcaneal arthrodesis. The system offers 150 mm, 300 mm, and 350 mm working length options with nails available in Ø10.0 mm, Ø11.5 mm, and Ø13.0 mm diameters to accommodate a wide range of patient anatomies.

The Phantom® TTC Trauma Nail features a Quad Flex Tip to aid with proximal stress dissipation and insertion while maintaining sufficient robustness for use in complex fracture cases. The design incorporates PRECISION® Guide Technology for reproducible trajectory, an Internal Compression Screw capable of up to 8 mm of compression across the tibiotalar and subtalar joints, and Ø7.2 mm headless threaded pegs for secure fixation.

The Phantom® TTC Trauma Nail integrates seamlessly with the existing Phantom® Hindfoot instrumentation. The instrument set now includes an updated solid Ø3.8 mm drill to facilitate freehand drilling of proximal screws for long nail applications.

PRODUCT DESCRIPTION

The Phantom® TTC Trauma Nail is an extension of the Phantom® Hindfoot system designed to address complex hindfoot trauma and tibiotalocalcaneal arthrodesis. The system offers 150 mm, 300 mm, and 350 mm working length options with nails available in Ø10.0 mm, Ø11.5 mm, and Ø13.0 mm diameters to accommodate a wide range of patient anatomies.

The Phantom® TTC Trauma Nail features a Quad Flex Tip to aid with proximal stress dissipation and insertion while maintaining sufficient robustness for use in complex fracture cases. The design incorporates PRECISION® Guide Technology for reproducible trajectory, an Internal Compression Screw capable of up to 8 mm of compression across the tibiotalar and subtalar joints, and Ø7.2 mm headless threaded pegs for secure fixation.

The Phantom® TTC Trauma Nail integrates seamlessly with the existing Phantom® Hindfoot instrumentation. The instrument set now includes an updated solid Ø3.8 mm drill to facilitate freehand drilling of proximal screws for long nail applications.
