Wedge SystemsADDITIVE ORTHOPAEDICS® Cotton Plantarflexing Osteotomy Wedge
ADDITIVE ORTHOPAEDICS® Cotton Plantarflexing Osteotomy Wedge
A Unique Implant Solution made possible through the use of Additive Manufacturing
Built with LatTi-Structure®
3D printed Ti6Al4V Titanium ELI
Available in 4.5, 5.5, and 6.5mm size options
ADDITIVE ORTHOPAEDICS® Cotton Plantarflexing Osteotomy Wedge
Built with LatTi-Structure®
3D printed Ti6Al4V Titanium ELI
Available in 4.5, 5.5, and 6.5mm size options
PRODUCT DESCRIPTION

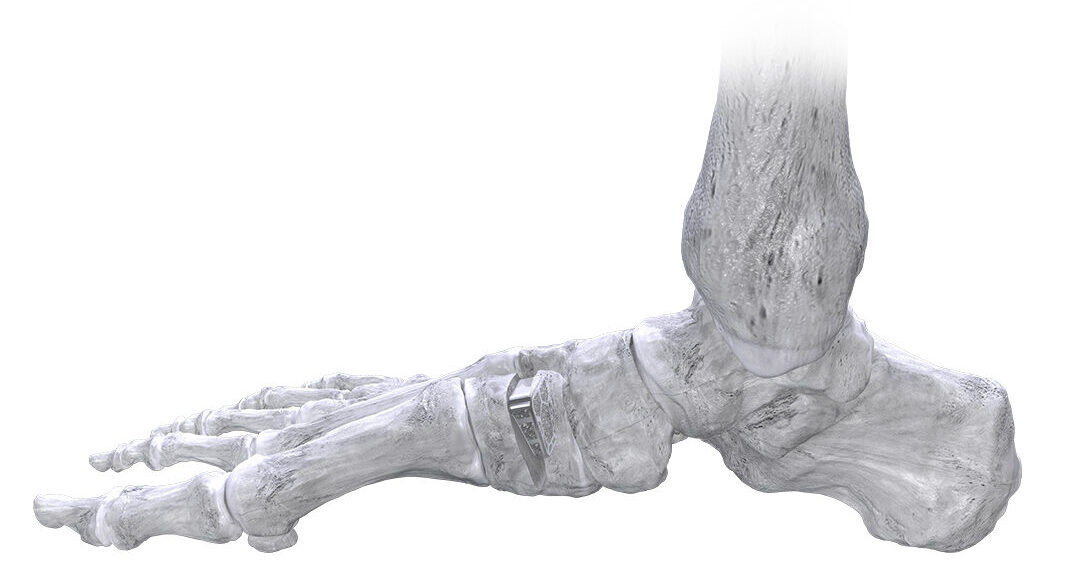

The ADDITIVE ORTHOPAEDICS® Bone Wedge System offers a porous titanium wedge that provides an alternative to allograft/autograft bone for a Cotton Osteotomy for plantarflexion of the first ray. The system includes procedure specific shaped Ti6AI4V Titanium ELI wedges in nine sizes. The wedges are additively manufactured and feature a propriety 79% porous lattice structure.
Wedge Sizes:
| AOCW-16-4.5 | AO COTTON BONE SEG- 16 X 14 X 10 X 4.5 |
| AOCW-16-5.5 | AO COTTON BONE SEG- 16 X 14 X 10 X 5.5 |
| AOCW-16-6.5 | AO COTTON BONE SEG- 16 X 14 X 10 X 6.5 |
| AOCW-18-4.5 | AO COTTON BONE SEG- 18 X 14 X 10 X 4.5 |
| AOCW-18-5.5 | AO COTTON BONE SEG- 18 X 14 X 10 X 5.5 |
| AOCW-18-6.5 | AO COTTON BONE SEG- 18 X 14 X 10 X 6.5 |
| AOCW-20-4.5 | AO COTTON BONE SEG- 20 X 14 X 10 X 4.5 |
| AOCW-20-5.5 | AO COTTON BONE SEG- 20 X 14 X 10 X 5.5 |
| AOCW-20-6.5 | AO COTTON BONE SEG- 20 X 14 X 10 X 6.5 |
Product Resources
