Wedge SystemsTITAN 3-D™ Cotton Plantarflexing Osteotomy Wedge

TITAN 3-D™ Cotton Plantarflexing Osteotomy Wedge

Open Geometry With 3-D Scaffold For Bone Through Growth
Central Opening Allows For Passage Of Screw To Stabilize Osteotomy
Anatomically Shaped To The Medial Cuneiform
Available In 5, 6, 7, And 8 mm Options
titan wedges

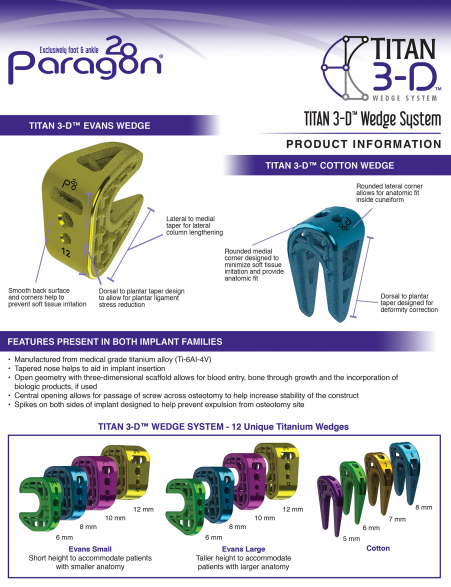

TITAN 3-D™ Wedge System

TITAN 3-D™ Evans Lateral Column Lengthening Wedge

Open Geometry With 3-D Scaffold For Bone Through Growth
Central Opening Allows For Passage Of Screw To Stabilize Osteotomy
Tapered Lateral To Medial Shape To Avoid Strain To The Spring Ligament
Tapered Dorsal To Medial Shape To Avoid Strain To The Long Plantar Ligament
Available in 6, 8, 10, and 12 mm Options
PRODUCT DESCRIPTION

The TITAN 3-D™ Wedge System offers a porous titanium wedge that provides an alternative to allograft/autograft bone for a Cotton Osteotomy for plantar flexion of the medial cuneiform. The TITAN 3-D™ Wedge System builds on Paragon 28®’s portfolio of osteotomy wedges and uses the same patented shapes as the PRESERVE Cotton Wedges.

The TITAN 3-D™ Wedges have an open geometry with a three-dimensional scaffold that allows for blood entry, bone through growth, and the incorporation of biologics if used. Each wedge has a central opening which allows for passage of a 3.5 or 4.0 mm screw across the osteotomy to help increase stability of the construct. In order to ensure accurate and consistent placement of this crossing screw, both wedge families leverage the patented PRECISION JONES™ System. To increase the coefficient of friction and minimize the chance of implant expulsion, the TITAN 3-D™ wedges are built with spikes which interface with bony surfaces. To facilitate accurate implantation, the system includes product specific inserters which thread onto the back of each wedge and have a strike plate to aid in final seating. The system also includes resection guides which limit excessive bone removal if explanation is required.

Surgical Video

Surgical Video
